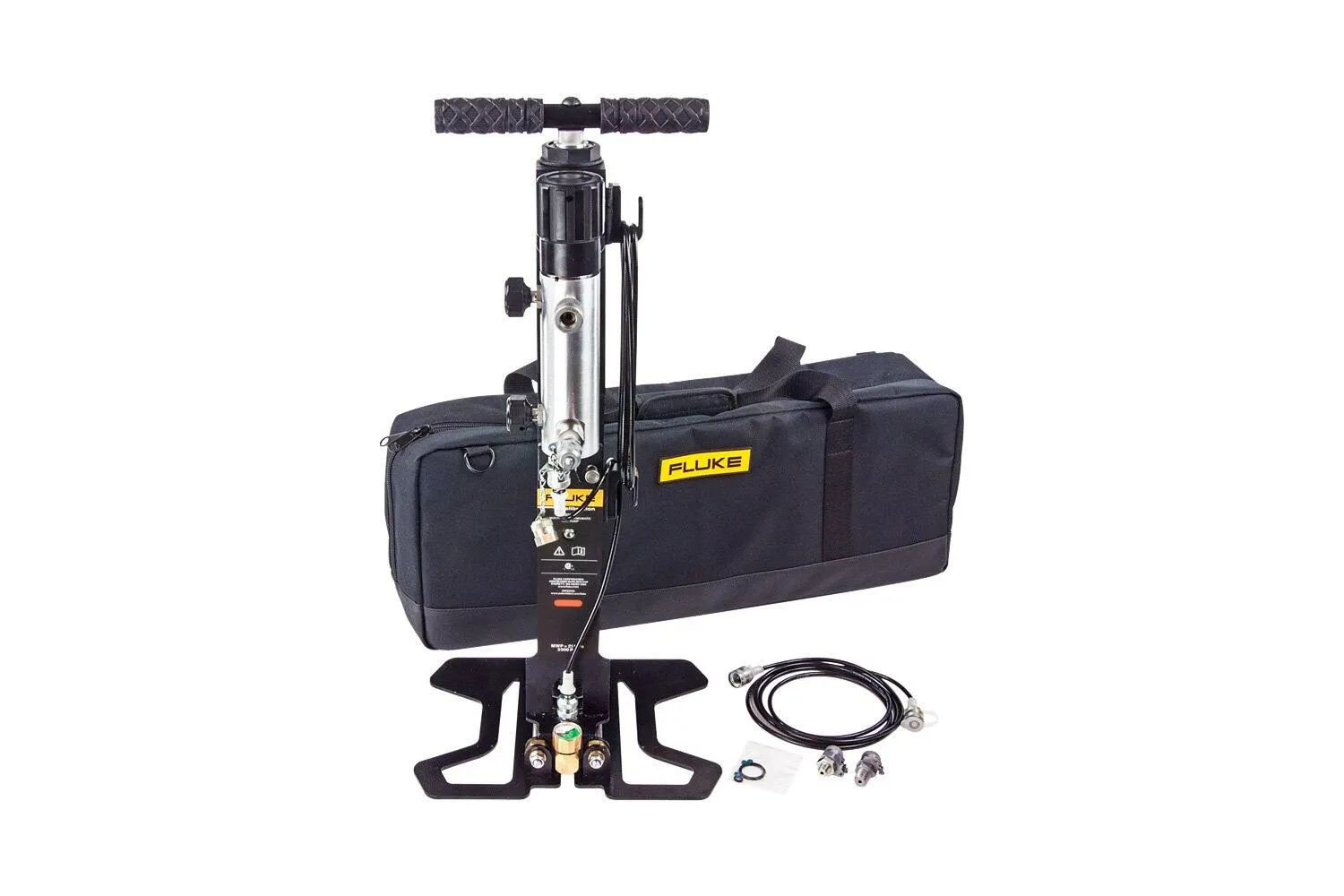

700HPPK Pneumatic Test Pump Kit

The 700HPPK Pneumatic Test Pump Kit generates up to 3000 psi, and it’s rugged and portable enough to take anywhere. It may look like a bicycle pump, but the rugged 700HPPK is actually the perfect eld-ready pressure source for calibrating transmitters, controllers, pilots, digital and analog gauges, and more.

Generates and adjusts pneumatic pressure up to 3000 psi (21 MPa) Safer than nitrogen cylinders Eliminates the mess of hydraulic pumps Reaches pressure in 20 seconds to full scale into a 30 cm3 volume Rugged, portable and stable enough to go anywhere—on any surface Reaches pressure in 20 seconds to full scale into a 30 cm3 volume Detachable pressure adjustment system for adjusting pressure, con- necting reference and test devices on bench and in field, and isolating and venting pressure Easily switch out reference gauges without requiring PTFE tape or tools 2-meter (6.5 foot) pressure line and assorted pressure fittings enable a wide variety of possible connections In-line filter and desiccant systems protects device from contamination from the DUT
