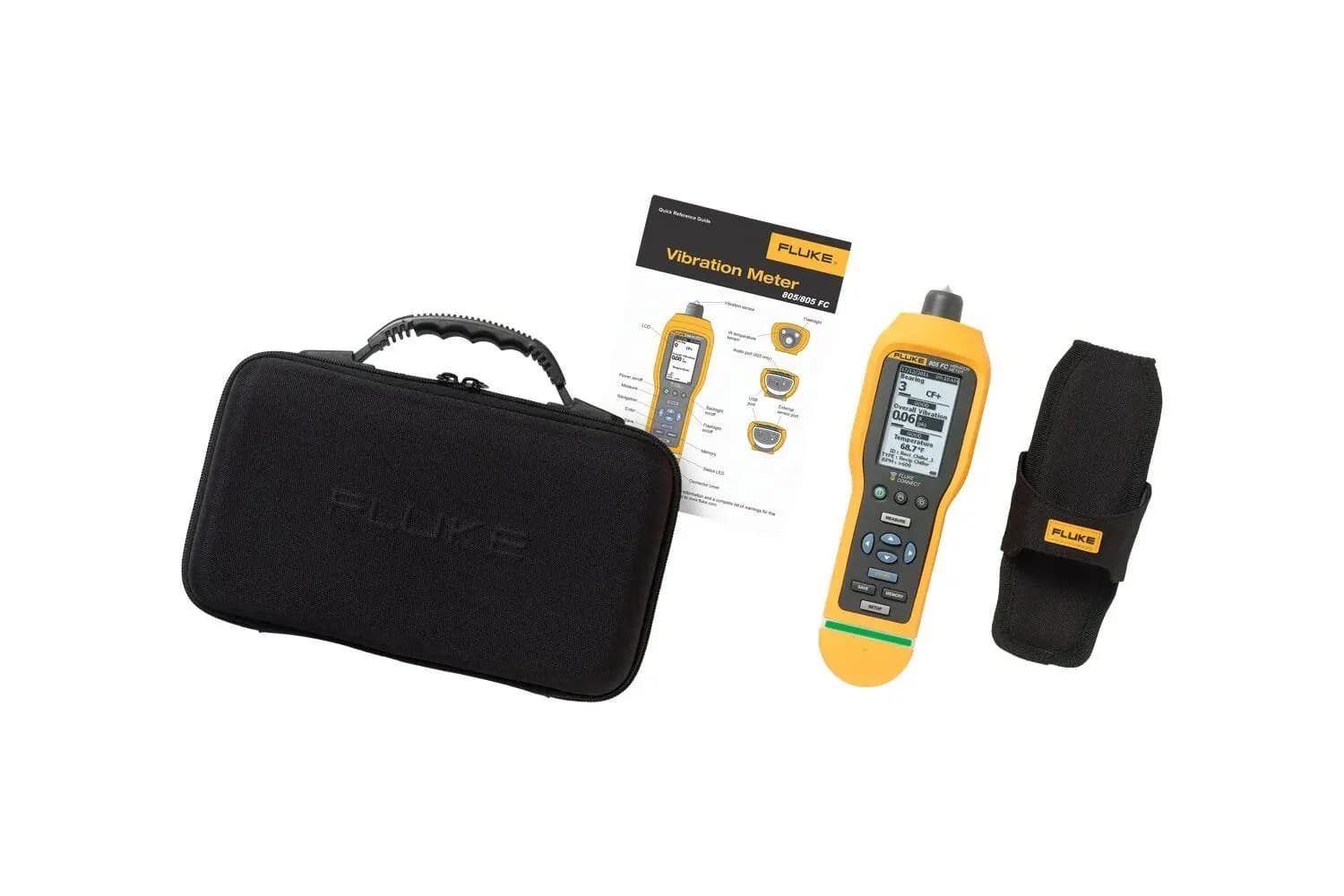

Fluke 805 FC Vibration Meter

The reliable, repeatable, accurate way to check bearings and overall vibration

Make go or no-go maintenance decisions with confidence. The Fluke 805 FC Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition.

What makes the Fluke 805 FC the most reliable vibration screening device available?

nnovative sensor design minimizes measurement variations caused by device angle or contact pressure Consistent data quality at both low and high frequency ranges Four-level severity scale assesses urgency of problems for overall vibration and bearing condition Exportable data via USB Trending in Microsoft® Excel using pre-built templates Overall vibration measurement (10 Hz to 1,000 Hz) for acceleration, velocity and displacement units of measurement for a wide variety of machines Crest Factor+ technology provides reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz Compare vibration levels with ISO-10816 severity scales and store results to the Fluke Connect Cloud Get authorization to take next steps in an instant if machine health is at risk via Fluke Connect® Share-Live™ video call* Colored lighting system (green, red) and on-screen comments indicate how much pressure needs to be applied to take measurements Temperature measurement with Spot IR Sensor increases diagnostic capabilities On-board memory holds and saves up to 3,500 measurements External accelerometer support for hard to reach locations Flashlight for viewing measurement locations in dark areas Large screen with high resolution for easy navigation and viewing *Within provider’s wireless service area

Fluke Connect® SmartView® desktop software is available in all countries but Fluke Connect system is not. Check with your local Fluke distributor.

All trademarks are the property of their respective owners. Smart phone, wireless service and data plan not included with purchase. First 5 GB of storage is free. Compatible with iPhone 4s and up running iOS 8 or higher, iPad (in an iPhone frame on iPad) and Galaxy S4, Nexus 5, HTC One running Android™ 4.4.x or higher. Apple and the Apple logo are trademarks of Apple Inc. registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play is a trademark of Google Inc.
