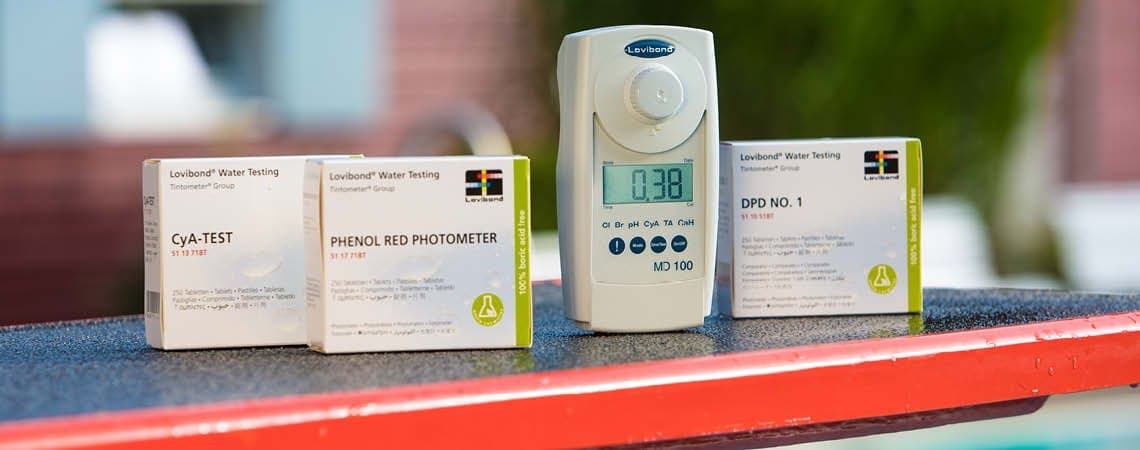

MD 100 Photometer
SKU: 276000
Portable multi-parameter photometer - lightweight single-unit design, tests up to 14 parameters.
- Genuine, authorised-distributor stock
- Full manufacturer warranty & support
- Calibration & traceability available
About the MD 100 Photometer
A lightweight, rugged portable photometer built as a single unit with no loose parts, for field water analysis. Large, easy-to-read display and a simple interface; tests up to 14 parameters on one instrument, with industry-specific parameter combinations available.
Used across boiler water, cooling water, disinfection control, drinking water treatment, galvanisation, pool water control, raw water treatment and wastewater treatment.
MD 100 Photometer specifications
| Available configurations | MD 100 Chlorine (tablet) 276000; MD 100 Chlorine (liquid) 276005; MD 100 Chlorine DUO (tablet) 276020; MD 100 Chlorine DUO (powder) 276025; MD 100 Chlorine (powder) 276010; MD 100 Molybdenum (tablet) 276142; AquaPRO6 (6 parameters) 278050; AquaPRO14 (11+ parameters) 278051 |
|---|---|
| Applications | Boiler water, cooling water, disinfection control, drinking water, galvanisation, pool water, raw water, wastewater |
| Optics | LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters: 430 nm Δλ = 5 nm 530 nm Δλ = 5 nm 560 nm Δλ = 5 nm 580 nm Δλ = 5 nm 610 nm Δλ = 6 nm 660 nm Δλ = 5 nm |
| Wavelength Accuracy | ± 1 |
| Photometric Range | -2500 - 2500 mAbs |
| Display | backlit LCD (on keypress) |
| Interfaces | Infrared |
| Operation | Foil keypad |
| Calibration | factory calibration and user calibration. Reset to factory calibration possible |
| Internal Storage | internal ring memory for 16 data sets |
| Battery Life Time | approx. 17 hours |
| Clock | Real Time Clock and Date |
| Portability | Portable |
| Compliance | CE |
| Dimensions | 6.1 x 2.95 x 1.38" |
| Measuring ranges | Chlorine HR T 0.1 - 10 mg/L Cl 2; Chlorine L 0.02 - 4.0 mg/L Cl 2; Chlorine T 0.01 - 6.0 mg/L Cl 2 |
Specifications are as published by Lovibond. Ask us to confirm the exact variant, range and part number for your application before you order.
Datasheets & downloads
- Datasheet 276000 - MD 100 Chlorine, tablet reagentsPDF
- 00386442 - MD1x0 200 - Chlorine HR T, Chlorine L, Chlorine TPDF
- 00386388 Geräteanleitung lovi md 1x0 200PDF
- Instruction Manual Single Method - M100 - Chlorine T - enPDF
- Instruction Manual Single Method - M101 - Chlorine L - enPDF
- Instruction Manual Single Method - M103 - Chlorine HR T - enPDF
Datasheets are hosted by Lovibond and open in a new tab.
MD 100 Photometer: common questions
Is the MD 100 Photometer genuine and warranty-backed?
Yes. Measurands is an authorised distributor, so every Lovibond instrument is genuine, carries the full manufacturer warranty and is supported with firmware and service — never a grey-market import.
Can you supply the MD 100 Photometer to Batam, Bintan or Singapore?
Yes — we supply Lovibond instruments to customers across Singapore, Batam and Bintan. Request a quote with your application and we'll confirm availability, lead time and price.
Can it be supplied calibrated and traceable?
Yes. Through our sister calibration laboratory we can deliver the instrument calibrated with traceable documentation, so it is audit-ready on arrival.
Request a quote for the MD 100 Photometer
Genuine, warranty-backed (SKU 276000)— we'll confirm specifications, availability and a competitive price within one business day.
