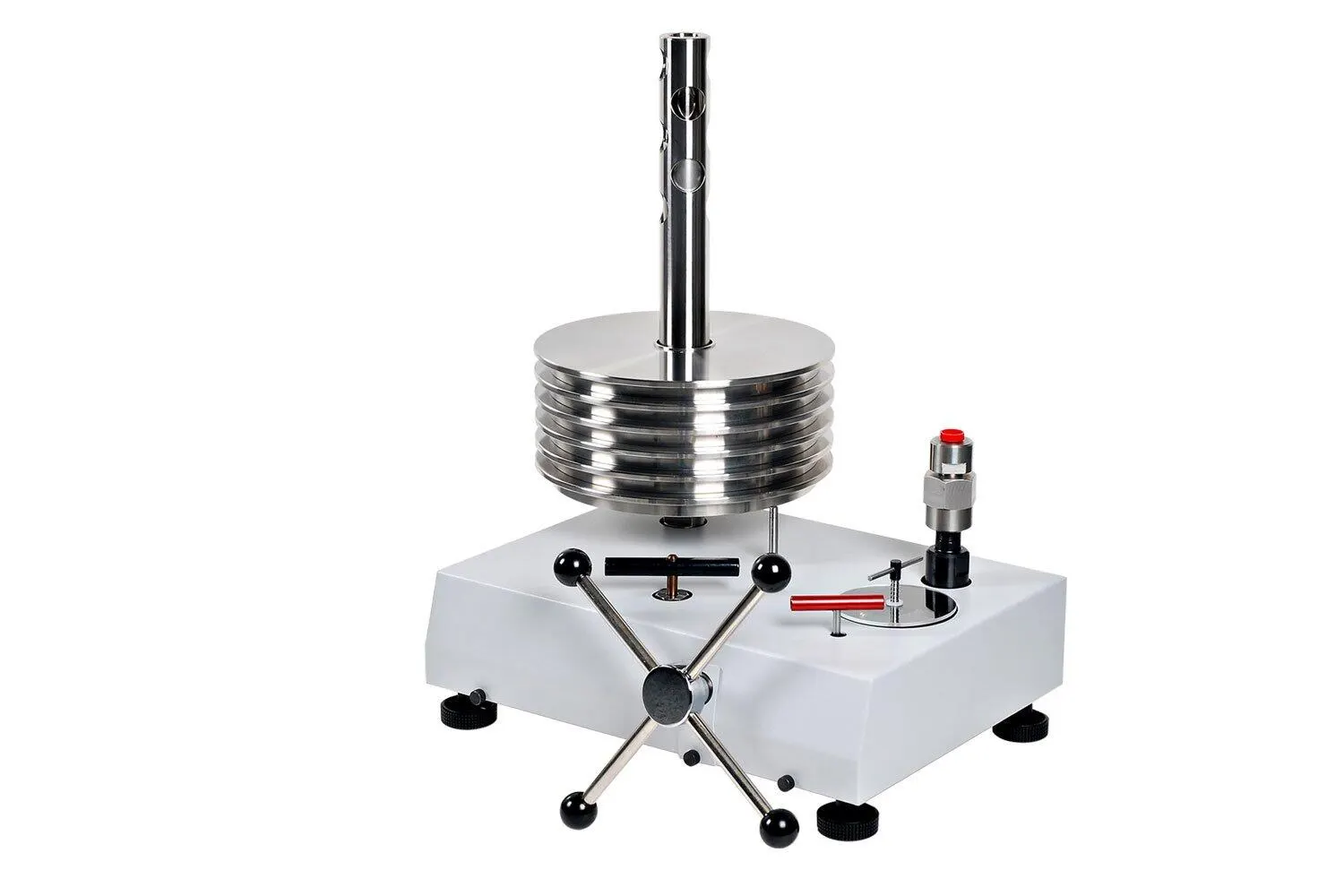

P3800 Hydraulic Deadweight Testers

Pressure ranges to 60,000 psi (4000 bar) Select from two accuracy classes; 0.02% or 0.015% of reading Includes hand pump and intensifier for generating high pressures Tungsten carbide piston and cylinder provides long term stability and durability Mass set can be trimmed to local gravity FOC The Pressurements P3800 Series High Pressure Hydraulic Deadweight Testers are the culmination of over 50 years of experience in the production and design of high performance pressure standards. With features and options designed to improve accuracy, increase reliability, and simplify operation, the P3800 Series can be used to calibrate virtually any high pressure sensing device including transducers, transmitters, gauges, pressure switches or other calibrators.

Three models are available, P3830, P3840 and P3860 offering pressure ranges of 30,000, 40,000 and 60,000 psi respectively (2000, 3000 and 4000 bar). All models are available in two accuracy classes, 0.02% or 0.015% of Reading. The Series P3800 offers an accurate and economical approach to calibrating high pressure devices. Instrument base  The instrument base includes all items required for operation. A high quality hand pump is coupled to a 7 to 1 intensifier, allowing the operator to easily generate high pressure in the system. An oil reservoir is included so the pump to be re-charged when calibrating large volume devices. A test station is provided for connecting the device under test to the P3800 Series. Adjustable feet and the level vial allow the operator to insure the instrument is level to achieve the ultimate performance. A piston float reference allows the operator to determine when the piston is in the ideal, “mid float” position.

Piston/cylinder The piston/cylinder is the “heart” of the deadweight tester. P3800 Series pistons are manufactured from tungsten carbide, which provides excellent long term stability, durability, and extremely low coefficients for temperature and pressure.

Weight sets  Standard weight masses are series 3 non-magnetic stainless steel. Each mass is marked with the serial number of the instrument and the nominal pressure value. Select either PSI, bar kgf/cm2 or MPa pressure units. Presscal software can be used to support additional pressure units.

Gravity correction  Gravity varies significantly with geographical locations. Each instrument can be calibrated to local gravity a no additional cost. If unspecified, instruments are calibrated to standard gravity at 980.665 cm/s2.

Options

PressCal software for pressure calculations and certificate generation Conversion weight sets Accredited calibration certificate (ISO/IEC 17025)
