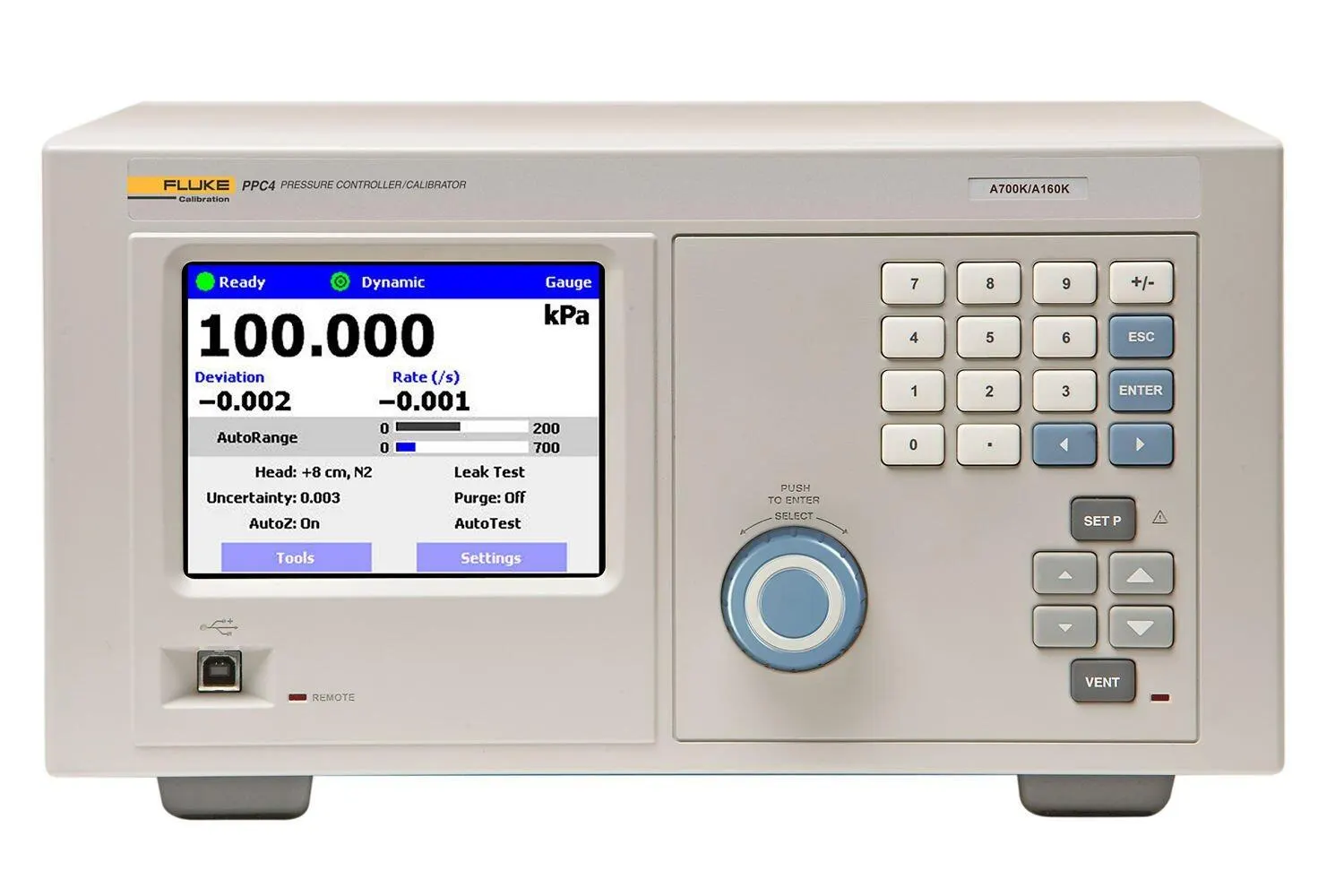

PPC4 Pressure Controller/Calibrator

PPC4 – Redefining premium performance in a digital pressure calibrator or portable pressure calibrator

Now with ranges up to 14 MPa (2,000 psi) 4 ppm control precision now to as low as 1 kPa absolute (0.15 psia) Portable pressure calibrator, available with support in eleven languages And still delivering:

Lowest measurement uncertainty available in a transfer standard 50:1 control precision turndown for extreme rangeability Open architecture with up to four internal and/or external reference pressure transducers Real time measurement uncertainty calculation and display From the cal lab bench top to 24/7 fully automated production testing, there’s a PPC4™ digital pressure calibrator configuration perfect for your pressure transducer calibration application.

Choice of new advanced local user interface with color display and point-and-click navigation or economical basic interface New Command Interpreter allows PPC4 as drop-in replacement for controllers in legacy pressure transducer calibration and test systems without costly software changes. New “f class” Q-RPT module for full scale performance at lower cost The basic and advanced PPC4 includes all the pressure transducer calibration features you expect in a state-of-the-art digital pressure calibrator

The importance of control precision is increasing with the recent trend for covering multiple pressure ranges with a single calibrator/ controller.

Learn more in “Why control precision matters.”

Read it now »

Portable pressure calibrator, rugged enough for mobile applications and standard shipment without special packaging Advanced user interface with full support in 11 languages Covers the absolute range of 1 kPa (0.15 psi) to 14 MPa (2,000 psi) and gauge equivalent, including very low differential pressure Control precision to ± 4 ppm of Q-PRT span, default ± 0.005% of Autoranged range Three different Q-RPT measurement classes available to fit different performance requirements Measured and delivered pressure uncertainties calculated real-time and available on remote and local interfaces Q-RPTs can be located in an external RPM4 so that PPC4 does not need to be shipped or removed for recalibration AutoRange feature optimizes and sets measurement, control and safety features for the specific range of the test beign run with a few simple entries Dynamic and static control modes with default or user specified parameters Common remote command protocol with Fluke Calibration PPC3 pressure controllers Front panel USB connection and free “cockpit software for full PC-based plug-and-play functionality Multiple remote interface options: RS232 and front panel USB included, IEEE-488.2 or Ethernet and rear USB optional Instantaneous switching between absolute, gauge and bidirectional gauge modes without added hardware or calibration requirements Instantaneous switching between control and measure modes with no pressure discontinuity Automated AutoZeroing while vented at atmospheric pressure 16 SI and US pressure units as well as user definable uits Simple, objective pressure “ready/not ready indicator with user adjustable criteria Automatic pressure head correction On-board, programmable calibration sequences with UUT tolerance testing Automated leak testing routines Valve drivers option for system design Automated self purging liquid trap (SPLT) accessory available for protection against liquid contamination Flash memory for simple and free embedded software upgrades from flukecal.com …and much more
