V7X Series Hipot Testers

Vitrek V7X Series – No Other Hipot Tester can Touch ’em

For nearly 25 years, an obsessions has driven us to keep improving how hipot testers perform – speed, accuracy, user safety and reliability have been our driving force. Building a better hipot tester is in our DNA – it drove us to successfully engineer the first 4-in-1 safety tester back in 1990 and it has driven us to redefine performance in low cost hipot testers today.

The Hipot Experience has been Redefined

Our goal for the V7X series has been to achieve the unheard of. To provide state-of-the-art performance in a powerful yet compact multi-function hipot tester – and do it at an entry level price. From our easy-to-use Touch user interface, to its ultra-reliability, high efficiency, fan free design – the V7X provides unrivaled performance. Have we met our goal? You be the judge – compare the V7X to our made in China competitors and see how well American engineering stands up. We build Vitrek Hipot Testers. What’s on your production line?

V75 with Built-in Hipot Switching

For high voltage cable & component testing – choose the V75 with 16 channels of built-in high voltage switching. With the versatile V75, you can test hipot or IR for any combination of up to 8 test points and you can measure low resistance (from .001 ohm to 60K ohms) on up to 8 conductors. All automatically with a single touch and all from a single compact tester. For requirements exceeding 8 points, the V7X can control up to 4 Vitrek 964i 64 channel HV Switching Systems – providing up to 256 channels of Hipot test capability. Simple, fast, automatic multi-point hipot – make the switch to the Vitrek V7X. You will be glad you did.

Product Features and Benefits

4.3″ Color Touch Display – Easy To Use Intuitive User Interface

6 Functions Choose From – AC/DC Hipot, IR, Ground Bond, Continuity & Built-in Switching

Made in the USA – Designed & Built in San Diego CA

Compact, Lightweight, Rugged, Fan Free, Fast (100mS min test time) & Accurate

5KV AC/DC Hipot, 20mA max source current

Ground Bond 1-30A RMS (42 A peak), 100µΩ Resolution

100 nano-Amp Leakage Current Resolution

Low Cost of Ownership – 2 Year Calibration Interval

USB 2.0, Serial/RS232, Digital I/O Interfaces are Standard

Continuously Variable Insulation Resistance 20-5000V, 450GΩ Max

Multi Mode IR with Steady/Rising Pass Mode

Test Memory Stores up to 999 Steps and 60 Test Sequences

Internal Self Test Fully Exercises Output and Verifies Current Accuracy

Pre-Programmed Daily Verification Test With Optional PVD Test Load

150µS Safety Shutdown

Ramped Discharge Capability

Selectable ARC Detection 1-20mA

Meets UL, CSA, IEC Safety Tester Requirements

CE Safety Mark Certified to EN61010

2 Year Parts & Labor Warranty

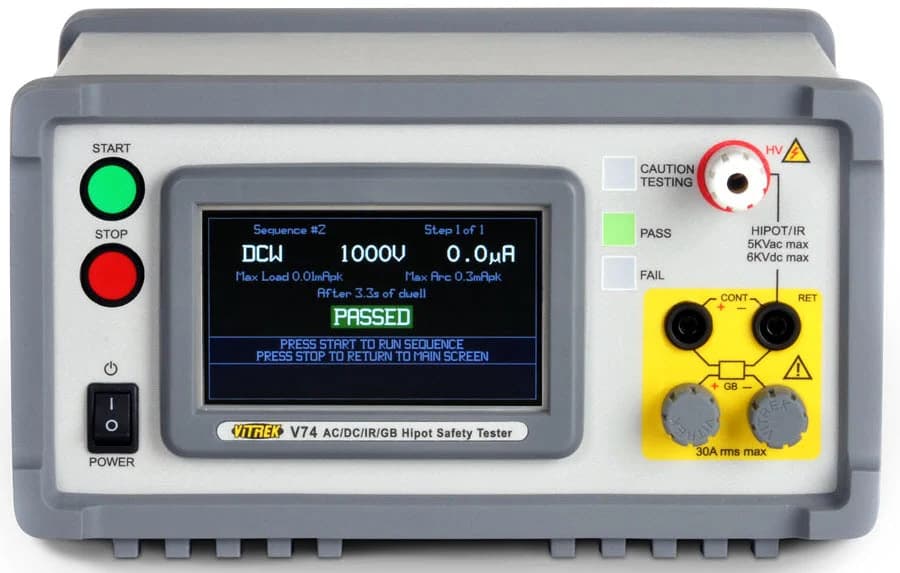

Front Panel Features

4.3″ Color Touch Display, All of the info you need – Super Easy to Use

Large, Bright LED Caution Testing Indicator

Safety Locked HV Terminal for Hipot & IR

Low Profile High Current Binding Posts for Ground Bond

Independent LED Pass/Fail Indicators

The Brand You Trust on Your Production Line

Convenient Front Panel Power Switch

Ultra-High Reliability Start/Stop Switches

Rear Panel Features

Digital I/O with Safety Interlock

Controls up to 4 HV Scanners (N/A on V75 with built-in HV Switching)

USB 2.0 High Speed Universal Serial Port

RS232 Serial Port with Selectable baud rate up to 115Kbaud

Ultra-Quiet, Ultra-Reliable, High Efficiency Fan Free Design

Heavy Duty 100% Silicone Protective Bumpers

Advanced Design, Built-in Quality – Made in the USA

Optional Rear Panel Terminals or on V75 16 terminals for Hipot/IR & Continuity

Rugged V7X with Drop Resistant Duty Silicone Bumper
