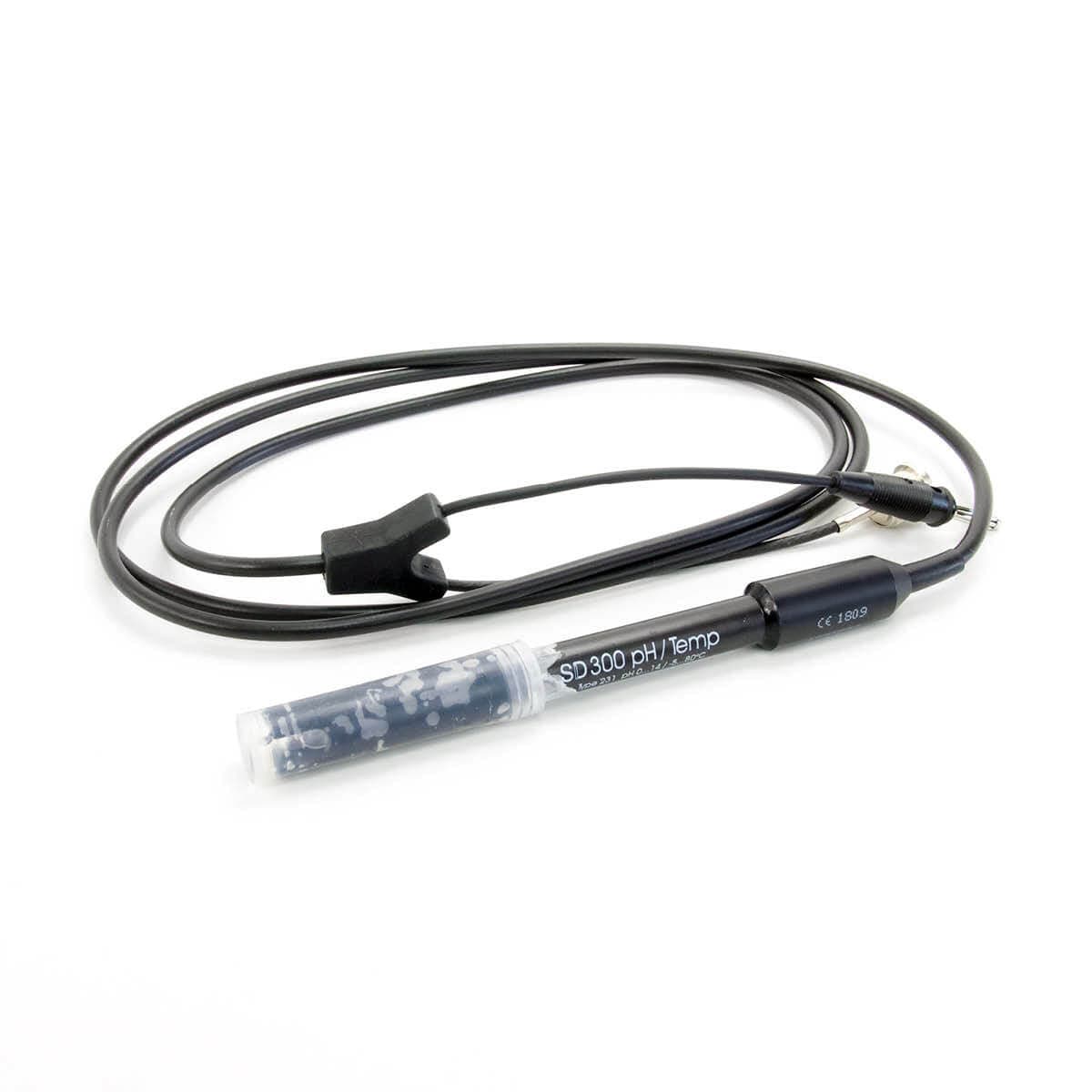

pH/temp. electrode, type 231, plastic/gel/temp. NTC30k Ohm, BNC-plug for SD300 / SD305 pH
SKU: 721231
Low-maintenance SD pH/temperature electrode with integrated temp sensor, for SD300/SD305 pH.
- Genuine, authorised-distributor stock
- Manufacturer batch quality and shelf life
- Method and instrument compatibility checked
About the pH/temp. electrode, type
The SD pH electrode type 231 with gel electrolyte is low-maintenance and features fast response times. Dual ceramic diaphragms suit low-conductivity samples, an integrated temperature sensor supports precise measurement, and the robust plastic housing protects the glass membrane. BNC connection fits the SD300/SD305 pH meters.
pH/temp. electrode, type 231, specifications
| Measuring range | 0-14 pH |
|---|---|
| Operating temperature | -5 to 80 degC |
| Sensor shape | Cylinder |
| Reference | Ag/AgCl |
| Diaphragm | 2 x Ceramic |
| Electrolyte | Gel, 3 M KCl |
| Integrated temperature sensor | NTC 30 kOhm |
| Outer material | PSU |
| Connection | pH: BNC; Temp: Banana |
| Length | 4.72 in |
| Diameter | 0.47 in |
| Cable length | 1.5 m |
| Measuring Range | 0 - 14 pH |
| Operating Temperature | -5 - 80 °C |
| Sensor Shape | Cylinder |
| Integrated Temperature Sensor | NTC 30 kΩ |
| Outer Material | PSU |
| Cable Length | 1.5 m |
Specifications are as published by Lovibond. Ask us to confirm the exact variant, range and part number for your application before you order.
